Retaining Walls Blue Mountains: Sandstone, Concrete Sleeper and Block Walls

Enquiries taken here cover the full range of retaining wall types suited to Blue Mountains conditions. The work itself is quoted and carried out by independent contractors; where licensing is required, the contractor’s identity and licence details are provided before you accept a quotation:

Concrete Sleeper Walls

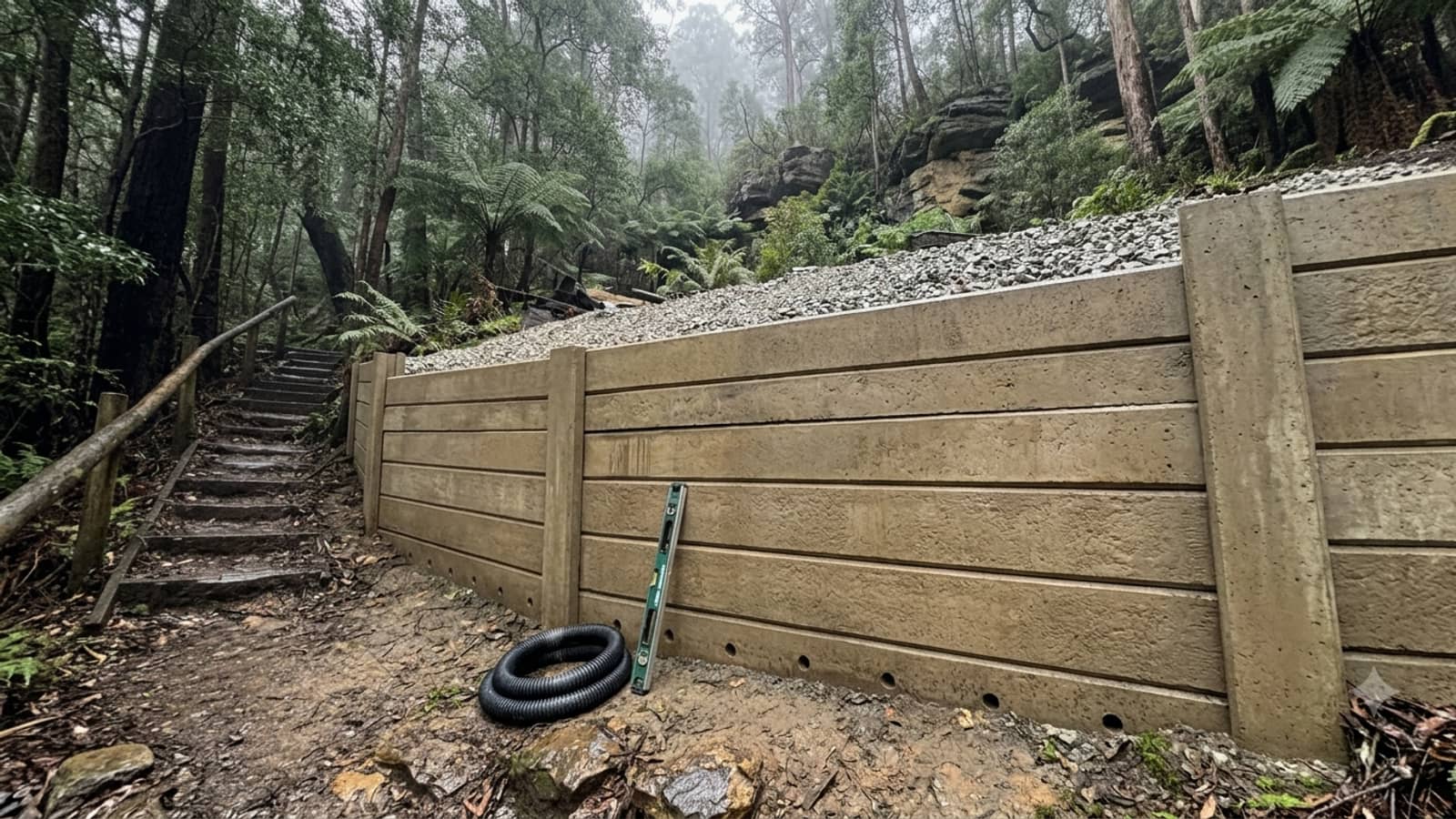

The most popular choice for Blue Mountains residential properties. Precast concrete sleeper panels slot between steel H-posts set in concrete footings. Engineered spans handle the structural loads from steep terrain. With proper drainage, these walls typically last several decades. Significantly more resistant to the high-rainfall environment than timber.

Timber Sleeper Wall Replacement

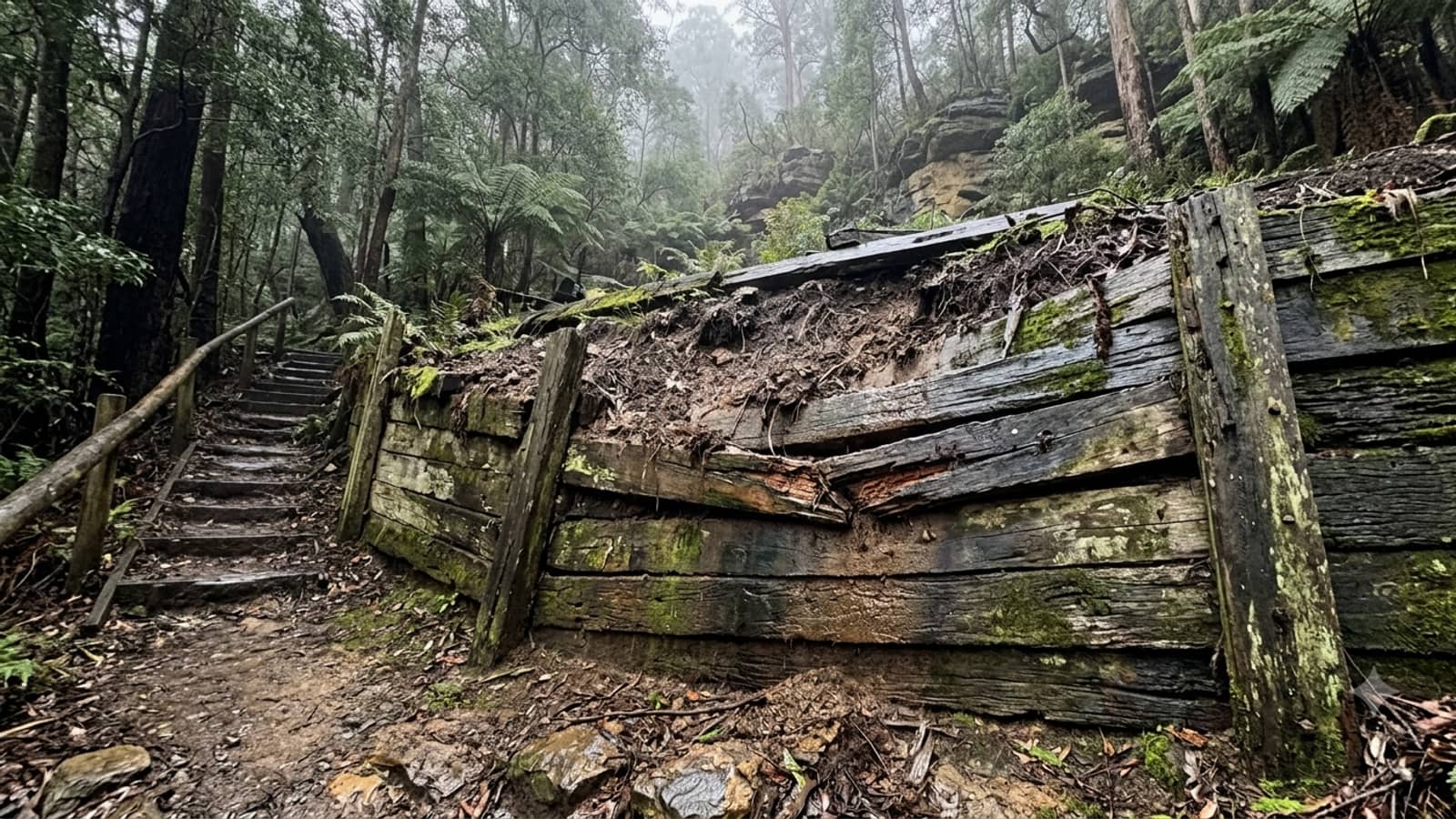

If your 1970s or 1980s timber sleeper wall is leaning, cracking, or showing rot, it’s likely at end of life. This is the most common retaining-wall job in the Blue Mountains: safe removal of an old failing wall and replacement with concrete sleeper or sandstone alternatives. The replacement process includes new drainage installation, the missing element in most original builds.

Sandstone Retaining Walls

Natural Hawkesbury Sandstone walls are the premium choice for heritage properties and prestige lifestyle blocks in Leura, Katoomba, and Blackheath. Locally sourced stone, a very long lifespan, and an aesthetic that genuinely belongs in the Blue Mountains landscape. Heritage approval can sometimes be easier to obtain with sandstone than concrete in heritage conservation areas.

Block and Besser Walls

Concrete block (besser block) walls offer a durable, cost-effective alternative for straight-run walls where heritage and aesthetic requirements are less stringent. Particularly suited to Springwood, Blaxland, and Glenbrook where modern construction standards apply without the upper-mountains heritage pressure.

Slope Stabilisation

Sometimes a retaining wall is not the right solution for an unstable slope. Geotextile reinforcement, shotcrete, vegetation systems, and improved drainage can stabilise slopes that don’t suit a hard wall structure. Every site needs its own assessment, and sometimes the honest answer is a geotechnical engineer before anyone quotes a wall.

We take enquiries from all areas within the Blue Mountains LGA. Click through for suburb-specific information on terrain, typical jobs, and local pricing:

• Katoomba, Heritage town centre, escarpment zones, steep sandstone terrain
• Leura and Wentworth Falls, Prestige properties, heritage gardens, sandstone walls
• Blackheath, Upper mountains, highest rainfall, Heritage Conservation Area
• Springwood, Eastern mountains gateway, high density of failing timber walls
• Blaxland and Glenbrook, Foothills, larger lots, accessible terrain
• Lawson and Hazelbrook, Mid-mountains, concrete sleeper replacement demand
• Mount Victoria, Elevated, isolated, high-value jobs, slope stabilisation focus
• Lapstone and Warrimoo, Mountain foothills, newer development, younger buyers

Retaining wall construction in the Blue Mountains follows a fairly consistent sequence whatever the material, and knowing that sequence makes it much easier to read a quote. Site assessment and levels come first, then the approval pathway is confirmed with BMCC, then engineering where the height or the overlay calls for it, then earthworks and footings, then the wall itself, then drainage, backfill and reinstatement. Drainage is not a final-day extra: it is built in as the wall goes up, layer by layer, which is precisely why it cannot be added cheaply afterwards.

Two things separate Blue Mountains retaining walls from the same job on flat ground. The first is the footing. Hawkesbury Sandstone at 300 to 800mm means H-post holes and stone footing trenches regularly need rock-breaking, and that changes both the programme and the price. The second is the approval sequence. Heritage conservation areas and landslip overlay zones pull walls that would be exempt elsewhere into a CDC or DA pathway, and that has to be settled before construction starts rather than discovered midway.

Who does the work matters too. This site is a referral service, not a builder: we do not construct walls and we hold no builder’s licence. Where the work requires a licensed contractor, the contractor’s identity and licence details are provided to you before you accept a quotation, so you can check them yourself. If you are comparing contractors on price alone, the drainage specification, the rock-breaking allowance and the approval scope are the three line items that most often explain the gap.

Blue Mountains retaining wall costs tend to run above comparable work in flat Sydney suburbs, driven by:

• Access premiums: Steep driveways, restricted machine access, manual labour component
• Rock-breaking: Sandstone bedrock at shallow depth adds time and equipment cost
• Drainage requirements: High-rainfall design means more drainage infrastructure per metre
• Engineering and certification: More walls here require engineering involvement than flat-terrain suburbs

Indicative price ranges (2026, Blue Mountains):

For a detailed breakdown with worked examples, see our Retaining Wall Cost Guide.

The Blue Mountains is not flat-Sydney country. Your block sits on Hawkesbury Sandstone, receives 1,200 to 1,400 millimetres of rainfall per year, and likely carries 40 to 50-year-old timber sleeper walls that are now leaning, rotting, or actively failing. Getting retaining walls right here demands more than a general landscaper with a bobcat, it demands builders who understand the terrain, the geology, the council rules, and the drainage requirements specific to this mountain environment.

Escarpment Retaining Walls is a specialist referral service working exclusively across the Blue Mountains LGA. Enquiries may be referred to independent contractors who build concrete sleeper walls, natural sandstone walls, and besser block walls on steep terrain, using drainage systems designed for the high-rainfall conditions that make or break a wall's long-term performance; where licensing is required, the contractor's identity and licence details are provided before you accept a quotation. BMCC requirements affect most retaining wall projects here, including heritage overlays in Katoomba and Leura and landslip overlay zones across the escarpment; the approval guides explain how they usually apply.
